True CVM-27-HC~EGC01 – Swing door display refrigerator with 30″ curved edge


Data sheet - True CVM-27-HC~EGC01

Item# : T040.TBR72RISZ1LB

Product features
Contemporary design with curved edges
Curved-edge door with integrated handle
Illuminated LED handle position indicator
Holds approx. 414 20 oz. bottles
6 adjustable, sturdy metal shelves with PVC coating
R-290 hydrocarbon refrigerant for environmentally-friendly operation
Temperature range 33°F to 38°F (0.5°C to 3.3°C)
State-of-the-art electronically commutated evaporator and condenser fan motors
Self-cleaning RCU technology eliminates the need to clean the condenser coil
NSF/ANSI 7 listed for storage applications
Digital outdoor temperature display
LED interior lighting, shielded for safety
Exterior: black powder-coated cold-rolled steel
Interior: black aluminum lining with stainless steel floor
Thermally insulated double-glazed glass door
Self-closing door
One-piece magnetic door seal

Brand: True
Model: CVM-27-HC~EGC01
Capacity: 27 cu. ft.
Bottle capacity: 414 20 oz. bottles
Number of shelves: 6 shelves
Door style: 1 swing door
Door type: Glass door
Refrigerant type : R-290
Temperature range: 33 to 38 degrees Fahrenheit (0.5°C to 3.3°C)
Construction: Cold-rolled steel
Exterior finish: Black powder coating
Lighting: LED

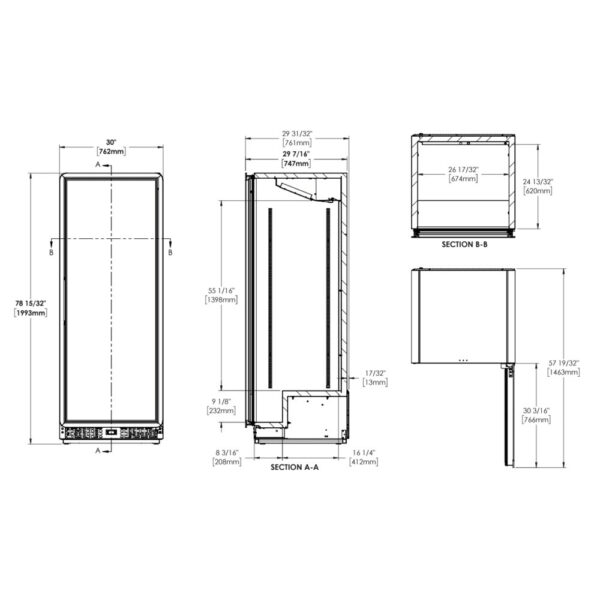

Width: 30 inches
Depth : 29 1/2 inches
Height : 78 1/2 inches
Weight : 340 pounds
Amps: 3.4 amps
Hertz : 60 Hertz
Phase : 1 phase
Voltage : 115 Volts
Power: 1/4 HP
Connector type : NEMA 5-15P
