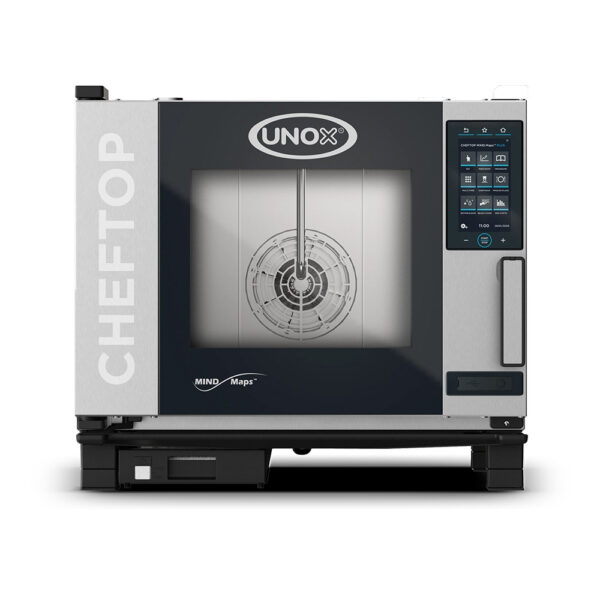

CHEFTOP MIND.Maps™ COUNTERTOP PLUS – Professional countertop gas combi oven – XAVC-0511-GPRM
Description
Item# : XAVC-0511-EPRM
Product features
Capacity for 5 GN 1/1 trays, for kitchens seeking the right balance between space and productivity
Natural or propane gas supply for optimum energy efficiency
AISI 304 stainless steel cooking chamber, resistant and easy to clean thanks to rounded edges
Adjustable temperature from 86°F to 500°F (30°C to 260°C), for maximum precision
Advanced PRESSURE.Steam, AIR.Maxi, STEAM.Maxi and DRY.Maxi technologies for total control
CLIMALUX, intelligent humidity management system for perfect results
ROTOR.Klean™, automatic washing system simplifying daily maintenance
Drip collection system integrated into the door, functional even when open
Integrated LED lighting, ensuring perfect visibility in the cooking chamber
Power supply: 120V / 1 phase / 60 Hz, with an electrical power of 1 kW
Specifications
Brand: Unox
Model: XAVC-0511-GPRM
Number of ovens: 1 oven
Power supply: Natural gas or propane gas
Control type: Digital
Number of doors: 1 door
Number of racks: 5 trays
Temperature range: 86°F to 500°F (30°C to 260°C)
Width: 29 inches
Depth: 31 inches
Height: 26 inches
Plate size: 12 x 20 inches
Weight: 183 lbs.
Gas connection: 3/4” female NPT
Inlet pressure: Min. 3.5 – Max. 10.5 iwc / GN
Inlet pressure: Min. 8.0 – Max. 13 iwc / LPG
BTU per hour: 81892 BTU/h
Voltage: 120 V
Phase: 1 Phase
Hertz: 60 Hz
Power: 1 kW
Amperage: 8 amps
Power cable: 3 x AWG 14
Plug: NEMA 5-20P
Drinking water inlet: 3/4” NPT
Warranty: 1 year parts and labor
